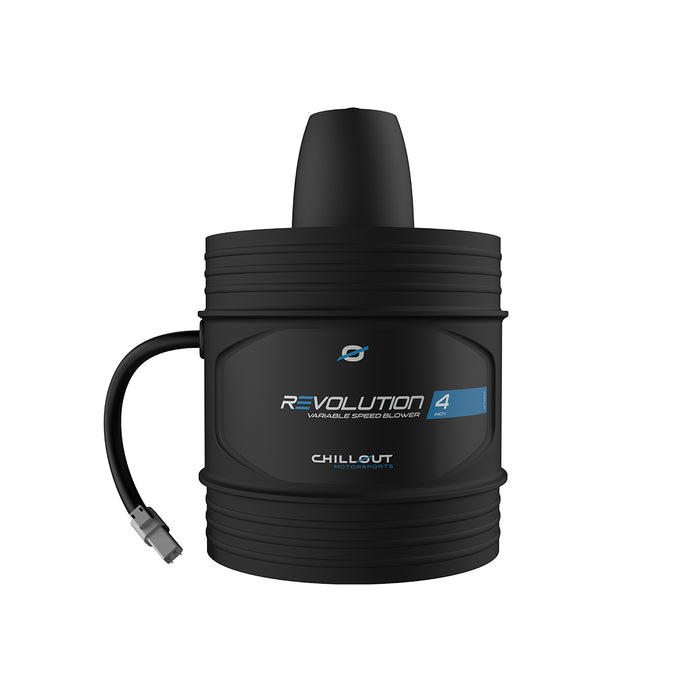

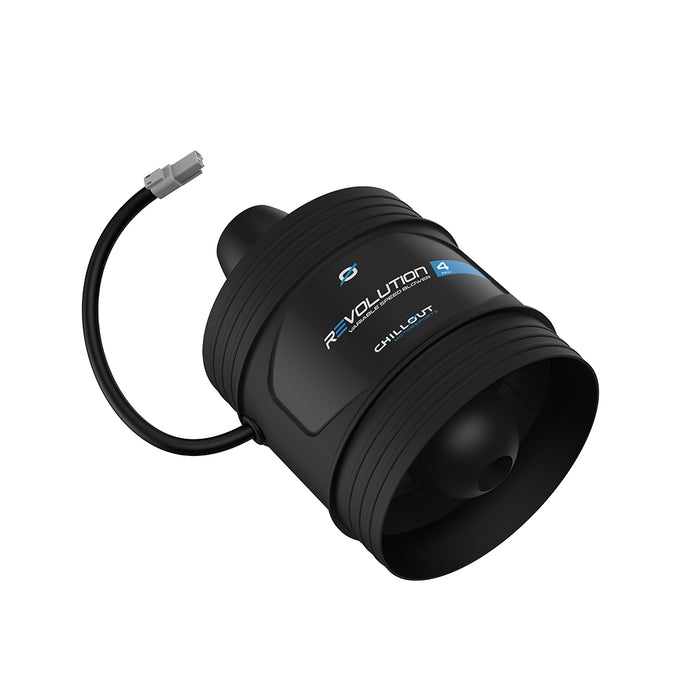

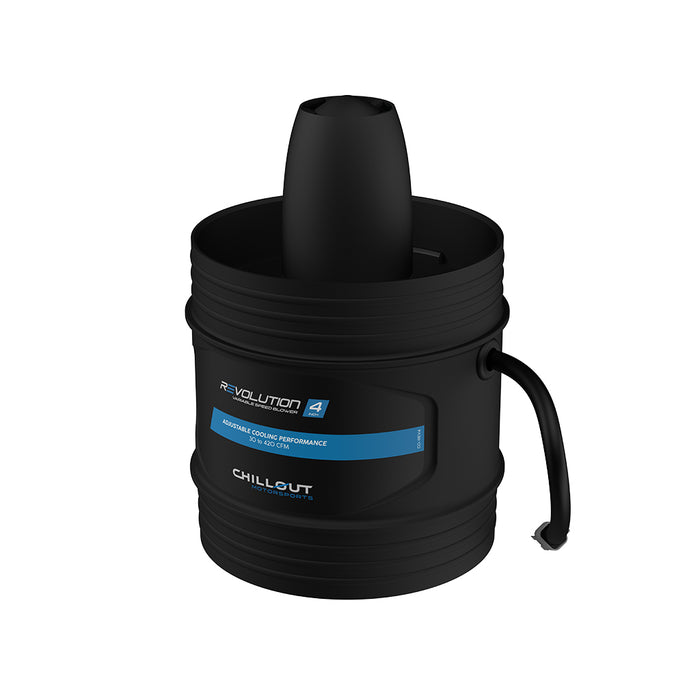

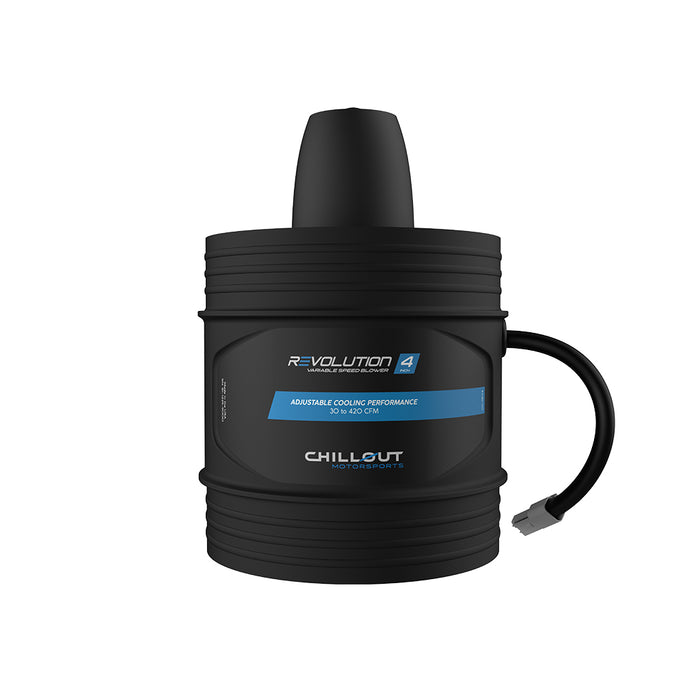

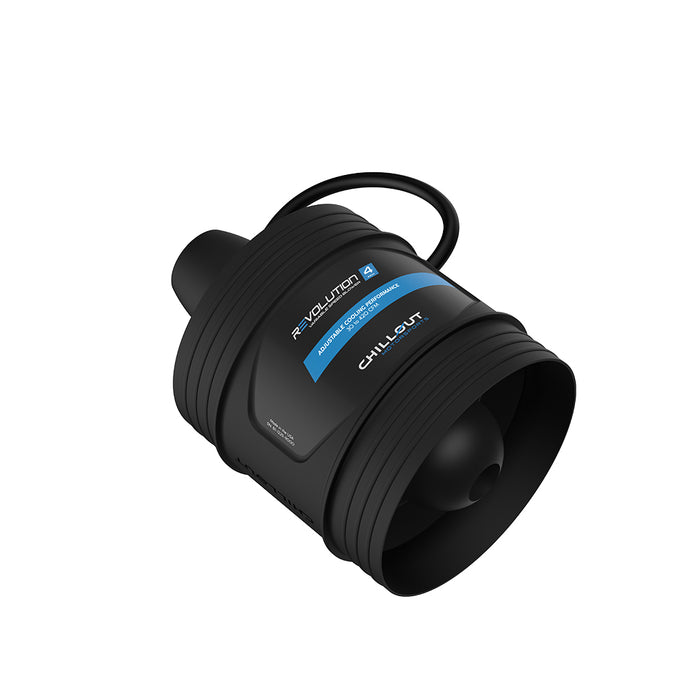

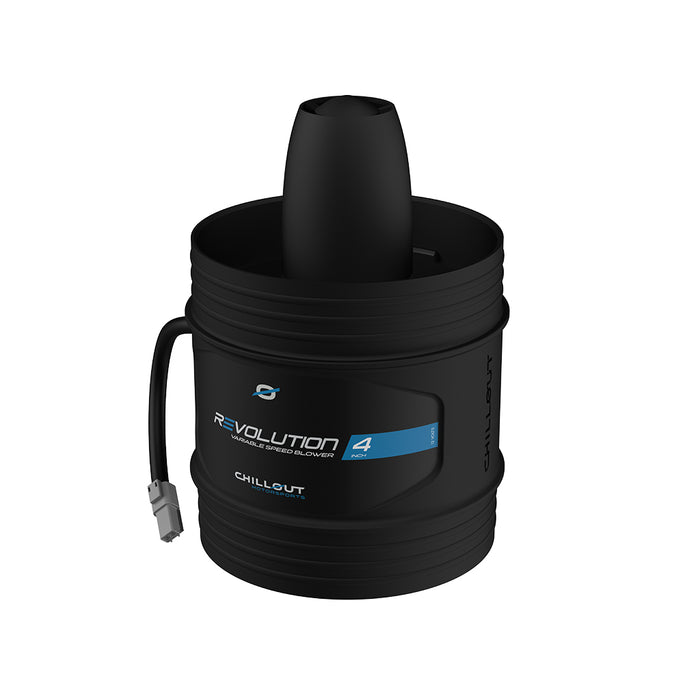

Revolution 4-Inch Variable Speed Blower

SKU CO-REV4
Original price $325.00 - Original price $325.00
Original price
$325.00
$325.00 - $325.00
Current price $325.00

More volume. More control. More cooling.

With a custom conformal-coated control board engineered specifically for its hand-built, soft-start brushless motor, it achieves performance levels once thought unattainable. User-adjustable speed settings allow operation from 30 CFM to an impressive 420 CFM, which is made possible through advanced development techniques and computer-controlled blade balancing. Designed specifically for motorsport racing, long carbon fiber-reinforced thermoplastics were chosen for their excellent rigidity, impact resistance, and lightweight properties. Like all Chillout products, the Revolution Series Blowers are backed by a one-year warranty against manufacturing defects and are engineered for long-term reliability.

  • Variable speed: 30–420 CFM

  • Power range: 0.2A to 12.5A

  • 4-inch duct connection

  • Rugged housing with vibration-resistant mount points

  • Integrates with Chillout Systems air delivery setups

Built for endurance. Tuned for performance.

Chillout Systems Revolution4 Product Information
Specification
Details
CFM
30–450 cfm
(Ships pre-set at 310 cfm)
Inlet Pressure
-6.5 in. H₂O
Outlet Pressure
+4.5 in. H₂O
Voltage
13.8 VDC
(Range: 11–17.5 V)
Amperage
7.5 A as shipped
(12.5 A at 450 CFM)
Lead Wire Connector
Male Deutsch Connector
(DDT04-2P)
Lead Wire Length
6 in.
Dimensions
3.25 in. Diameter × 5.25 in. Length
Duct Fittings
3.00 in. Diameter × 1.00 in. Length (each end)
Weight
8.45 oz / 240 g
Overload Protection
TBD
