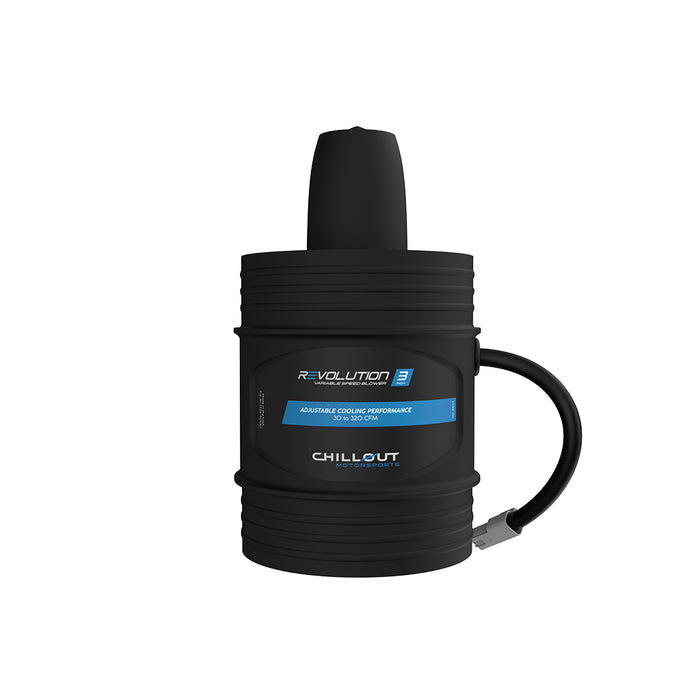

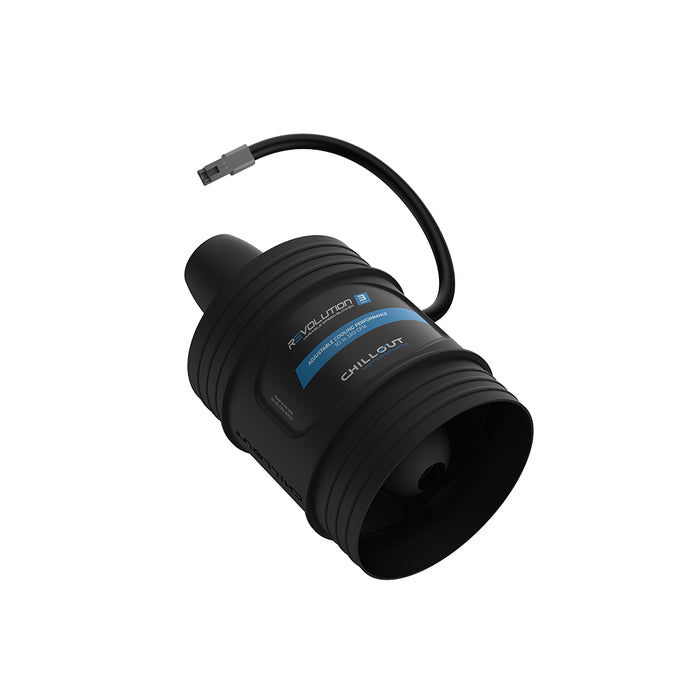

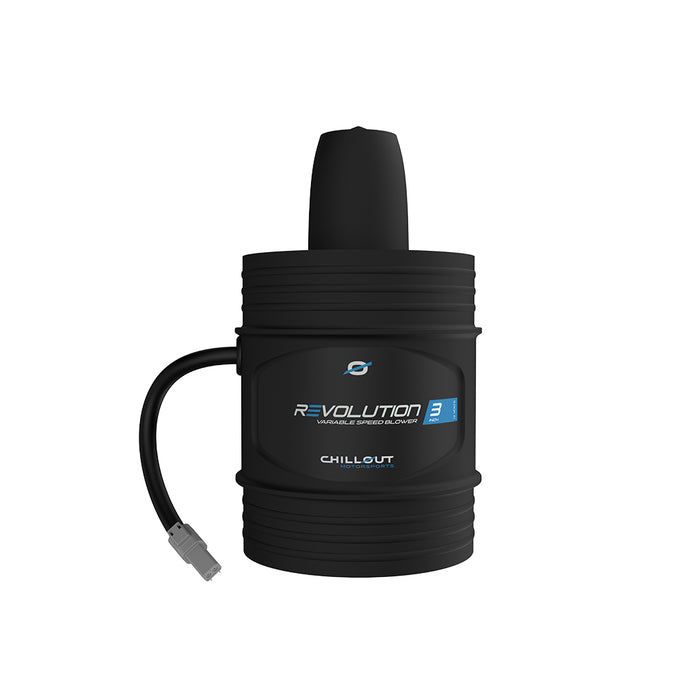

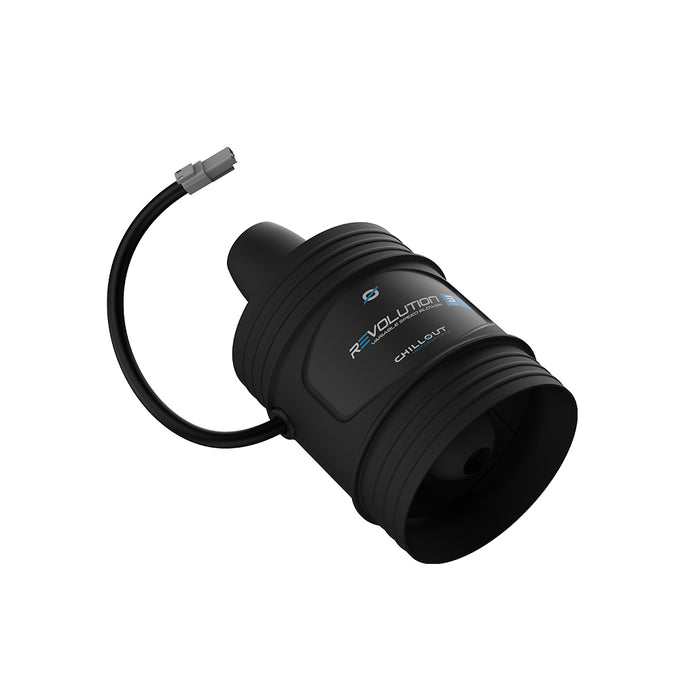

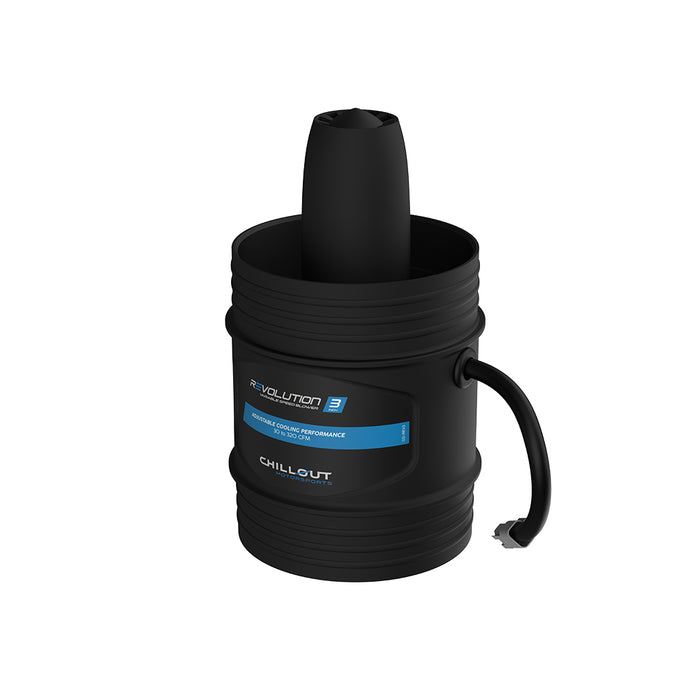

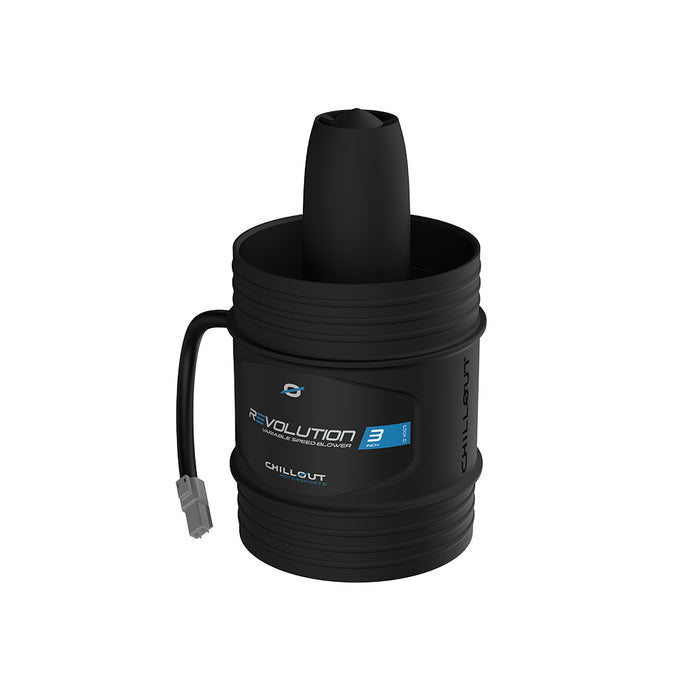

Revolution 3-Inch Variable Speed Brushless Blower

SKU CO-REV3
Original price $280.00 - Original price $280.00
Original price
$280.00
$280.00 - $280.00
Current price $280.00

With a custom conformal-coated control board engineered specifically for its hand-built, soft-start brushless motor, it achieves performance levels once thought unattainable. User-adjustable speed settings allow operation from 30 CFM to an impressive 310 CFM, which is made possible through advanced development techniques and computer-controlled blade balancing. Designed specifically for motorsport racing, long carbon fiber-reinforced thermoplastics were chosen for their excellent rigidity, impact resistance, and lightweight properties. Like all Chillout products, the Revolution Series Blowers are backed by a one-year warranty against manufacturing defects and are engineered for long-term reliability.

  • Variable speed: 30–310 CFM

  • Power range: 0.2 to 10.5A

  • 3-inch duct connection

  • Lightweight and compact

  • Compatible with Chillout Systems air distribution setups

Chillout Systems Revolution4 Product Information
Specification
Details
CFM
30–310 cfm
(Ships pre-set at 280 cfm)
Inlet Pressure
-6.5 in. H₂O
Outlet Pressure
+4.5 in. H₂O
Voltage
13.8 VDC
(Range: 11–17.5 V)
Amperage
6.5 A as shipped
(10.5 A at 310 CFM)
Lead Wire Connector
Male Deutsch Connector
(DDT04-2P)
Lead Wire Length
6 in.

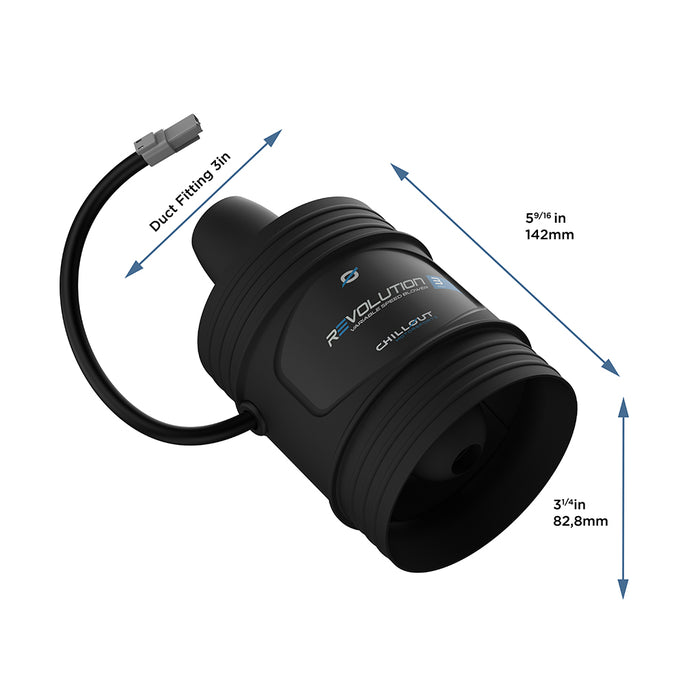

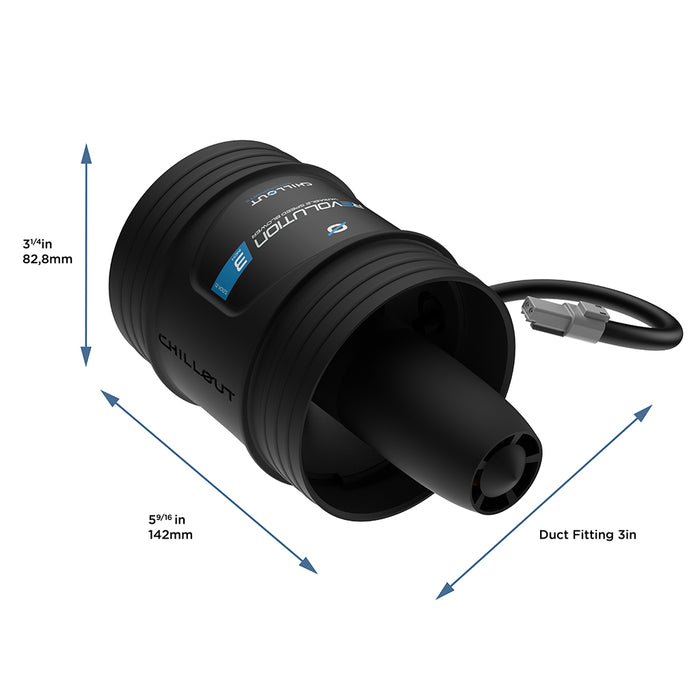

Dimensions
3.25 in. Diameter × 5.25 in. Length
Duct Fittings
3.00 in. Diameter × 1.00 in. Length (each end)
Weight
8.45 oz / 240 g
Overload Protection
TBD
